Product Features and Advantages
High Energy Efficiency
Saves up to 99% of electricity
PV Direct-Drive Compatibility
3-4HP PV direct-drive heat pump: DC60-300V, max 6 panels per string
5-15HP PV direct-drive heat pump: DC200-650V, max 12 panels per string
Technical Parameters
| Model | SinglePhase /Three Phase | KPV-10CWR/BP | KPV-12CWR/BP | KPV-16CWR/BPKPV-16CWR/BP3 | KPV-20CWR/BPKPV-20CWR/BP3 | KPV-22CWR/BPKPV-22CWR/BP3 | KPV-30CWR1/BP3 | KPV-40CWR1/BP3 | KPV-45CWR1/BP3 |
| Rated Cooling | Cooling Capacity (W) | 7200 | 9000 | 10500 | 15000 | 16500 | 20000 | 25000 | 35000 |
| Mains Input Power Range (W) | 180-2600 | 180-3300 | 300-3800 | 300-5400 | 300-6100 | 600-7300 | 600-9000 | 2800-12800 | |
| EER (W/W) | 2.77-40.0 | 2.73-50.0 | 2.76-35.0 | 2.77-50.0 | 2.70-55.0 | 2.74-33.3 | 2.78-41.7 | 2.73-12.5 | |
| Rated Heating(A7 W45) | Heating Capacity (W) | 9000 | 10500 | 15000 | 18000 | 22000 | 28000 | 33000 | 42000 |
| Mains Input Power Range (W) | 170-2560 | 170-2980 | 280-4200 | 280-5000 | 280-6300 | 580-7800 | 580-9200 | 2000-12000 | |
| COP (W/W) | 3.51-52.9 | 3.52-61.8 | 3.57-53.5 | 3.60-64.3 | 3.49-78.5 | 3.59-48.3 | 3.58-56.9 | 3.50-21.0 | |
| Nominal Heating(A-12 W41) | Heating Capacity (W) | 6000 | 7200 | 10000 | 12800 | 14500 | 20000 | 23000 | 28000 |
| Mains Input Power Range (W) | 170-2420 | 170-2980 | 280-4100 | 280-5200 | 280-6200 | 580-8130 | 580-9300 | 1800-11800 | |
| COP (W/W) | 2.48-35.3 | 2.42-42.3 | 2.44-35.7 | 2.46-45.7 | 2.34-51.8 | 2.46-34.5 | 2.47-39.6 | 2.37-15.5 | |
| Low-Temperature Heating(A-20 W41) | Heating Capacity (W) | 5000 | 6000 | 8000 | 10000 | 12000 | 16000 | 19000 | 23000 |
| Mains Input Power Range (W) | 170-2470 | 170-2980 | 280-3980 | 280-4900 | 280-6100 | 580-7900 | 580-9500 | 1670-11670 | |
| COP (W/W) | 2.02-29.4 | 2.01-35.3 | 2.01-28.6 | 2.04-35.7 | 1.97-42.8 | 2.03-27.6 | 2.00-32.7 | 1.97-13.7 | |
| Heating Integrated Part Load Value | IPLV (H) (W/W) | 3.20 | 3.21 | 3.20 | 3.20 | 3.21 | 3.20 | 3.20 | 3.20 |
| Outdoor Unit Power Supply | V/Hz | 220V~50Hz | 220V~50Hz | 220V~50Hz or 380V~50Hz/3N | 220V~50Hz or 380V~50Hz/3N | 220V~50Hz or 380V~50Hz/3N | 380V~50Hz/3N | 380V~50Hz/3N | 380V~50Hz/3N |
| PV Module | Allowable Input Voltage Range (V) | DC60-300V | DC60-300V | DC200-650V | DC200-650V | DC200-650V | DC200-650V | DC200-650V | DC200-650V |
| Configuration Spec | (/) | Max. Output Power STC 585W, NOCT 441W; Opt. Operating Voltage STC 44V, NOCT 41V | |||||||
| Standard Configuration Quantity | (pcs) | 6pcs×1set | 4pcs×2sets | 10pcs×1set | 7pcs×2sets | 7pcs×2sets | 9pcs×2sets | 10pcs×2sets | 8pcs×3sets |
| Max. PV Power Generation (STC) | (W) | 3510 | 4680 | 5850 | 7020 | 7020 | 10530 | 11700 | 14040 |
| Max. Outlet Water Temp | (℃) | 60 | |||||||
| Max. Input Power | (W) | 3500 | 4500 | 6000 | 7200 | 8000 | 9000 | 12500 | 15500 |
| Max. Input Current | (A) | 16.7 | 21.4 | 28.6/10.7 | 34.1/2.9 | 38/4.3 | 16.1 | 22.3 | 27.7 |
| Water Flow Rate | (m³/h) | 1.55 | 1.81 | 2.58 | 3.10 | 3.78 | 4.82 | 5.68 | 7.22 |
| Water Pressure Drop | (Kpa) | 35 | 36 | 38 | 40 | 45 | 50 | 52 | 55 |
| Connection Pipe Diameter | / | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 |
| Max. Working Pressure (Mpa) | Heat Exchanger Side | 4.5 | |||||||
| Low Pressure Side | 2.1 | ||||||||
| High Pressure Side | 4.2 | ||||||||
| Dimensions: L×W×H (Box Size) (mm) | 1060×410×825 | 1060×410×825 | 1080×420×1390 | 1080×420×1390 | 1080×420×1390 | 1280×480×1590 | 1280×480×1590 | 1280×480×1590 | |
| Weight | Net Weight (kg) | 87 | 97 | 112 | 127 | 142 | 183 | 193 | 205 |
| Refrigerant | Type | R410A | |||||||
| Noise | dB(A) | 54 | 54 | 55 | 56 | 56 | 57 | 57 | 58 |
| Remarks |
1: Test condition A: Outdoor ambient temperature; W: Outlet water temperature. 2: COP is the energy efficiency value calculated under laboratory conditions based on mains input power consumption (excluding external water pump power). 3: PV panel STC condition: Irradiance 1000W/㎡, cell temperature 25℃; NOCT condition: Irradiance 800W/㎡, cell temperature 45℃. 4: PV panel configuration quantity "5-2" means 10 PV panels in total, 5 panels in series per string, 2 strings in parallel. |
||||||||

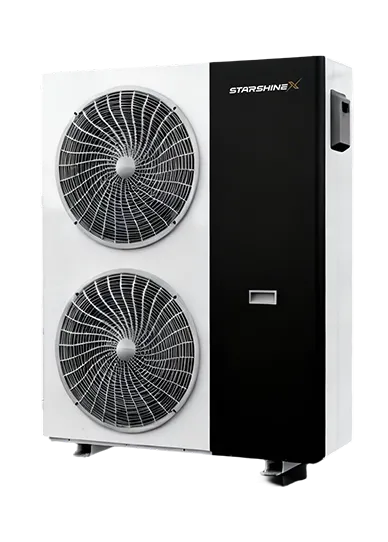

SK-7200 Titanium Series Inverter Low-Ambient Temperature Air Source Heat Pump (Chiller) Unit (PV Direct-Drive Type)
