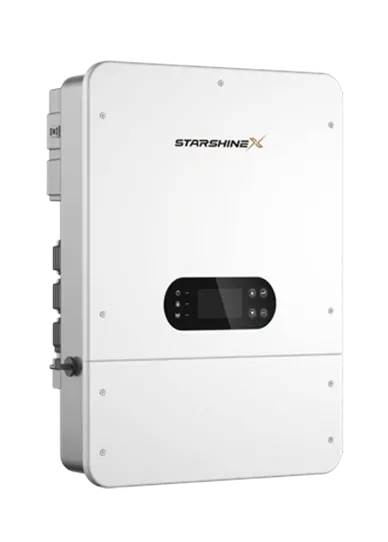

Product Features and Advantages
Enhanced Safety
Optional AI-driven DC arc detection, Type II surge protection on both AC and DC sides
Superior Performance
20A per phase grid input, 200% PV oversupport; dual independent battery inputs with total 416A capacity
Smart Monitoring
<4ms seamless switching, compatible with generators and simultaneous battery charging
High Compatibility
Up to 150% unbalanced output, supports both lithium and lead-acid batteries
Technical Parameters
| Technical Data | 5K | 6K | 8K | 10K | 12K | 15K | 20K |
| Battery Side | |||||||
| Battery Type | LFP (LiFePO₄)/Lead-acid | ||||||
| Nominal Battery Voltage (V) | 48 | ||||||
| Battery Voltage Range (V) | 40-60 | ||||||
| Number of Battery Inputs | 1 | 1 | 1 | 1 | 1 | 2 | 2 |
| Max. Continuous Charging Current (A) | 135 | 175 | 175 | 250 | 250 | 165/165 | 208/208 |
| Max. Continuous Discharging Current (A) | 125 | 135 | 175 | 220 | 250 | 165/165 | 208/208 |
| Max. Charging Power (kW) | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 | 15.5 | 20.0 |
| Max. Discharging Power (kW) | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 | 15.5 | 20.0 |
| PV Side | |||||||
| Max. Input Power (kW) | 10 | 12 | 16 | 20 | 24 | 30 | 40 |
| Max. Input Voltage (V) | 1000 | ||||||
| MPPT Operating Voltage Range (V) | 150-850 | ||||||
| Start-up Voltage (V) | 80 | ||||||
| Nominal Input Voltage (V) | 620 | ||||||
| Max. MPPT Current (A) | 20/20 | 20/20 | 20/20 | 20/20/20 | 20/20/20 | 20/20/20/20 | 20/20/20/20 |
| Max. MPPT String Current (A) | 26/26 | 26/26 | 26/26 | 26/26/26 | 26/26/26 | 26/26/26/26 | 26/26/26/26 |
| Number of MPPT Trackers | 2 | 2 | 2 | 3 | 3 | 4 | 4 |
| Number of Strings per MPPT | 1/1 | 1/1 | 1/1 | 1/1/1 | 1/1/1 | 1/1/1 | 1/1/1 |
| AC Side (On-grid) | |||||||
| Nominal Power (kW) | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
| Max. Power (kW) | 5.5 | 6.6 | 8.8 | 11.0 | 13.2⁴ | 16.5⁴ | 22.0⁴ |
| Nominal Apparent Power Output to Grid (kVA) | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
| Max. Apparent Power to Utility Grid (kVA) | 5.5 | 6.6 | 8.8 | 11.0 | 13.2 | 16.5 | 22.0 |
| Nominal Apparent Power from Grid (kVA) | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
| Max. Apparent Power from Grid (kVA) | 48.3 | 48.3 | 48.3 | 48.3 | 48.3 | 48.3 | 48.3 |
| Nominal Voltage (V) | 400 / 380, 3L / N / PE | ||||||
| Voltage Range (V) | 170 – 290 | ||||||
| Nominal Frequency (Hz) | 50 / 60 | ||||||
| Frequency Range (Hz) | 45 – 65 | ||||||
| Max. Current to Grid (A) |
7.9@230V 8.3@220V |
9.6@230V 10@220V |
12.8@230V 13.4@220V |
15.9@230V*⁵ 16.7@220V |
19.1@230V*⁵ 20@220V |
23.9@230V*⁵ 25@220V |
31.9@230V*⁵ 33.3@220V |
| Max. Current From Grid (A) | 7.5@220V7.2@230V |
9.1@220V 8.7@230V |
12.1@220V 11.6@230V |
15.2@220V 14.5@230V |
18.2@220V 17.4@230V |
22.7@220V 21.7@230V |
30.3@220V 29@230V |
| Nominal Current From Grid (A) |
7.5@220V 7.2@230V |
9.1@220V 8.7@230V |
12.1@220V 11.6@230V |
15.2@220V 14.5@230V |
18.2@220V 17.4@230V |
22.7@220V 21.7@230V |
30.3@220V 29@230V |
| Nominal Current to Grid (A) |
7.5@220V 7.2@230V |
9.1@220V 8.7@230V |
12.1@220V 11.6@230V |
15.2@220V 14.5@230V |
18.2@220V 17.4@230V |
22.7@220V 21.7@230V |
30.3@220V 29@230V |
| Power Factor | ~1 (Adjustable from 0.8 leading~0.8 lagging) | ||||||
| THDI | <3% | ||||||
| Back-up Side | |||||||
| Nominal Output Apparent Power (kVA) | 5 | 6 | 8 | 10 | 12 | 15 | 20 |
| Max. Output Apparent Power (kVA) | 5.5 (10.0, 10s) | 6.6 (12.0, 10s) | 8.8 (16.0, 10s) | 11.0 (20.0, 10s) | 13.2 (24.0, 10s) | 16.5 (30.0, 10s) | 22.0 (40.0, 10s) |
| Max. Output Apparent Power with Grid (kVA) |
48.3 7.2@230 |
48.3 8.7@230V |
48.3 11.6@230V |
48.3 14.5@230V |
48.3 17.4@230V |
48.3 21.7@230V |
48.3 29@230V |
| Max Output Current (Bypass) | V7.0 | ||||||
| Nominal Output Voltage (V) | 400 / 380, 3L / N / PE | ||||||
| Nominal Output Frequency (Hz) | 50 / 60 | ||||||
| Generator Side | |||||||
| Nominal Activated Power (kVA) | 20 | ||||||
| Max. Apparent Power (kVA) | 20 | ||||||
| Nominal Voltage (V) | 400 / 380 | ||||||
| Nominal Frequency (Hz) | 50 / 60 | ||||||
| Frequency Range (Hz) | 45-55 / 55-65 | ||||||
| Max. Current (A) | 30.3 | ||||||
| Efficiency | |||||||
| Max. Efficiency | 97.8% | 97.8% | 97.8% | 97.8% | 97.8% | 97.9% | 97.8% |
| European Efficiency | 97.0% | 97.0% | 97.1% | 97.3% | 97.3% | 97.3% | 97.3% |
| Max. Battery to AC Efficiency | 95.5% | ||||||
| MPPT Efficiency | 99.9% | ||||||
| Protection | |||||||
| PV String Current Monitoring | Integrated | ||||||
| PV Insulation Resistance Detection | Integrated | ||||||
| PV Reverse Polarity Protection | Integrated | ||||||
| PV Anti-Polarity Protection | Integrated | ||||||
| Battery Reverse Polarity Protection | Optional | Optional | Optional | Optional | Optional*6 | Optional*6 | Optional*6 |
| Anti-Islanding Protection | Integrated | ||||||
| AC Short Circuit Protection | Integrated | ||||||
| AC Overcurrent Protection | Integrated | ||||||
|
DC Switch
|
Integrated | ||||||
| DC Surge Protection | Type II | ||||||
|
AC Surge Protection
|
Type II | ||||||
| AFCI*7 | Optional | ||||||
| Rapid Shutdown | Optional | ||||||
| Remote Shutdown | Integrated | ||||||
| General Data | |||||||
| Operating Temperature Range (°C) | -35 ~ +60 | ||||||
| Relative Humidity | 0-95% | ||||||
| Max. Operating Altitude (m) | 4000 | ||||||
| Cooling Method | Smart Fan Cooling | ||||||
| Communication with BMS | CAN | ||||||
| Communication | WIFI/LAN+ Bluetooth, 4G, RS485, CAN | ||||||
| Communication Protocols | Modbus RTU (RS485), Modbus TCP/IP (Ethernet), SunSpec Modbus RTU | ||||||
| Weight (kg) | 42.2 | 42.2 | 42.2 | 46.3 | 46.3 | 49.7 | 51.2 |
| Dimension (W × H × D mm) | 756 × 551 × 258 | ||||||
| Noise Emission (dB) | <45 | ||||||
| Power Self-Consumption at Night (kW) | <15 | ||||||
| Ingress Protection Rating | IP65 | ||||||
| Anti-corrosion Class | C4 | ||||||
| Mounting Method | Wall Mounted | ||||||
*1: The Li-lon battery usually contain two mainstream type: LFP and Ternary Lithium battery.
*2: When the input voltage is greater than 980V. the inverter will enter standby mode. and when the voltage returns to below 95oV the inverter will return to normal operation.
*3: Please refer to the user manual for the MPPT Voltage Range at Nominal Power.
*4: For Brazil and Chile, the Max. Power is the same with the Nominal Power
*5: For Brazil, for 12K, 15Kand 20K, the Max. Current to Grid is 18.2A@220V, 22.7A@220V and 30.3A@220V respectively.
*6: For Brazil, for 12K, 15K and 20K, the Battery Reverse Polarity Protection is integrated
*7:AFCl is integrated in Brazil
*8: 5K is expected to be available around October.
*: All pictures shown are for reference only. Actual appearance may vary.
