Product Features and Advantages
Maximum Safety
Intelligent BMS control, ensuring both high safety and durability
Easy Installation
Ultra-slim and lightweight design, offering high installation flexibility
High Compatibility
Versatile scenario adaptation and flexible functional configuration
Superior Performance
High system efficiency with low investment cost
Technical Parameters

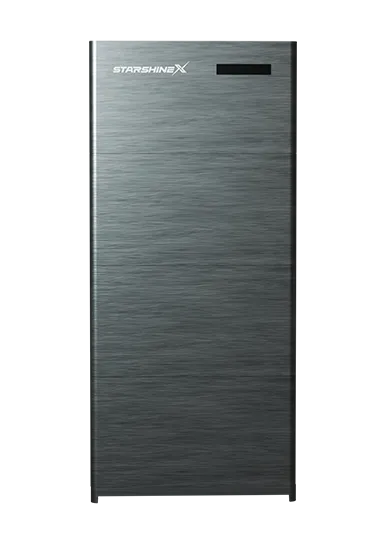

| Model | ST-200 (314Ah) |
| Rated Energy (kWh) | 6.02 |
| Usable Energy (kWh)¹ | ≥5.72 |
| Nominal Voltage (V) | 19.2V |
| Max. Continuous Charging Current (A) | 140 |
| Max. Continuous Discharging Current (A) | 200 |
| Max. Input Power (System) (kW)² | 3 |
| Max. Output Power (System) (kW)² | 3 |
| Peak Output Power (System) (kW)² | 3 |
| Charging Temperature Range (°C) | 0 |
| Discharging Temperature Range (°C) | -20 |
| Relative Humidity | 5 ~ 85% |
| Max. Operating Altitude (m) | ≤5000 |
| Communication | CAN, RS485 |
| Weight (kg) | 45kg |
| Cycle Life@25°C | 8000 |
| Dimensions (W × H × D mm) | 750 / 450 / 150 |
| Optional Function Configuration | Fire Protection/Heating Film |
| Ingress Protection | IP66 |
| Ambient Temperature | Charging Temperature: 0°C-55°CDischarging Temperature: -20°C-55°C |
| Max. Storage Time | 12 months (-20 |
| Mounting Method | Floor-Mounted, Wall-Mounted |
| Color | Black, Silver, Gold |
Smart energy solutions for various scenarios
Secure, scalable, and efficient solutions for home and outdoor energy management.
Home energy independence
Solar efficiency on the balcony is improved
Outdoor travel and emergency preparedness
Commercial and industrial energy storage
Centralized large-scale energy storage
